Indicative Layouts for Roflexs Electric Fencing

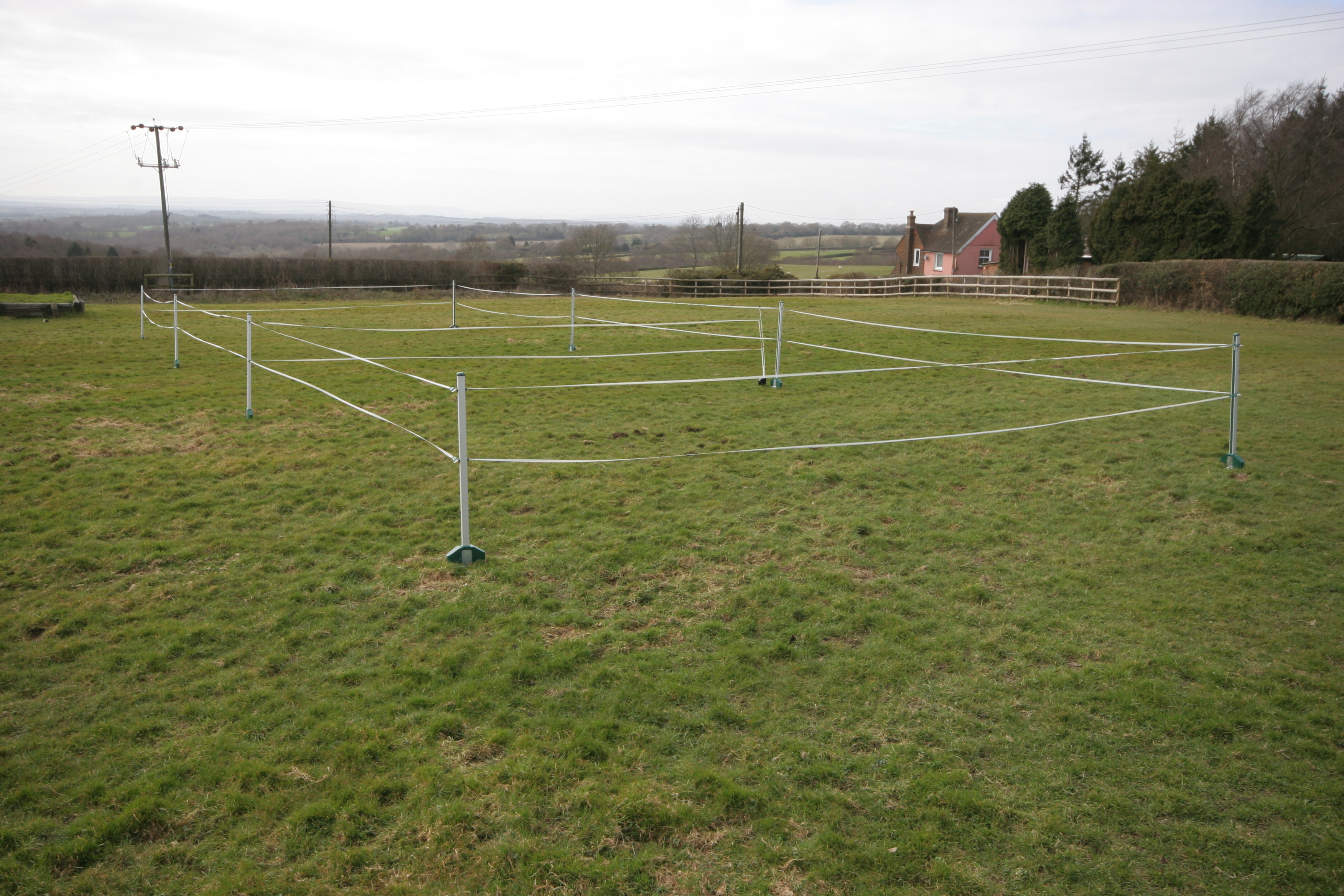

Below are some indicative layouts showing the post arrangement in plan, the number of posts needed, and a photograph of each to help you in working out your needs. Premium posts give a 7.5 to 8m bay length. Basic, a 5m bay length. Profi a 7m bay length, and travel sets, a 6m bay length. The photographs below are using the Premium system with 7.5 to 8m bay length.

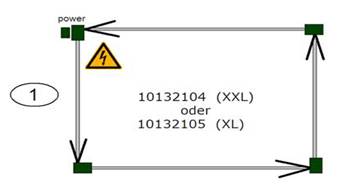

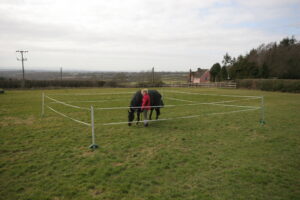

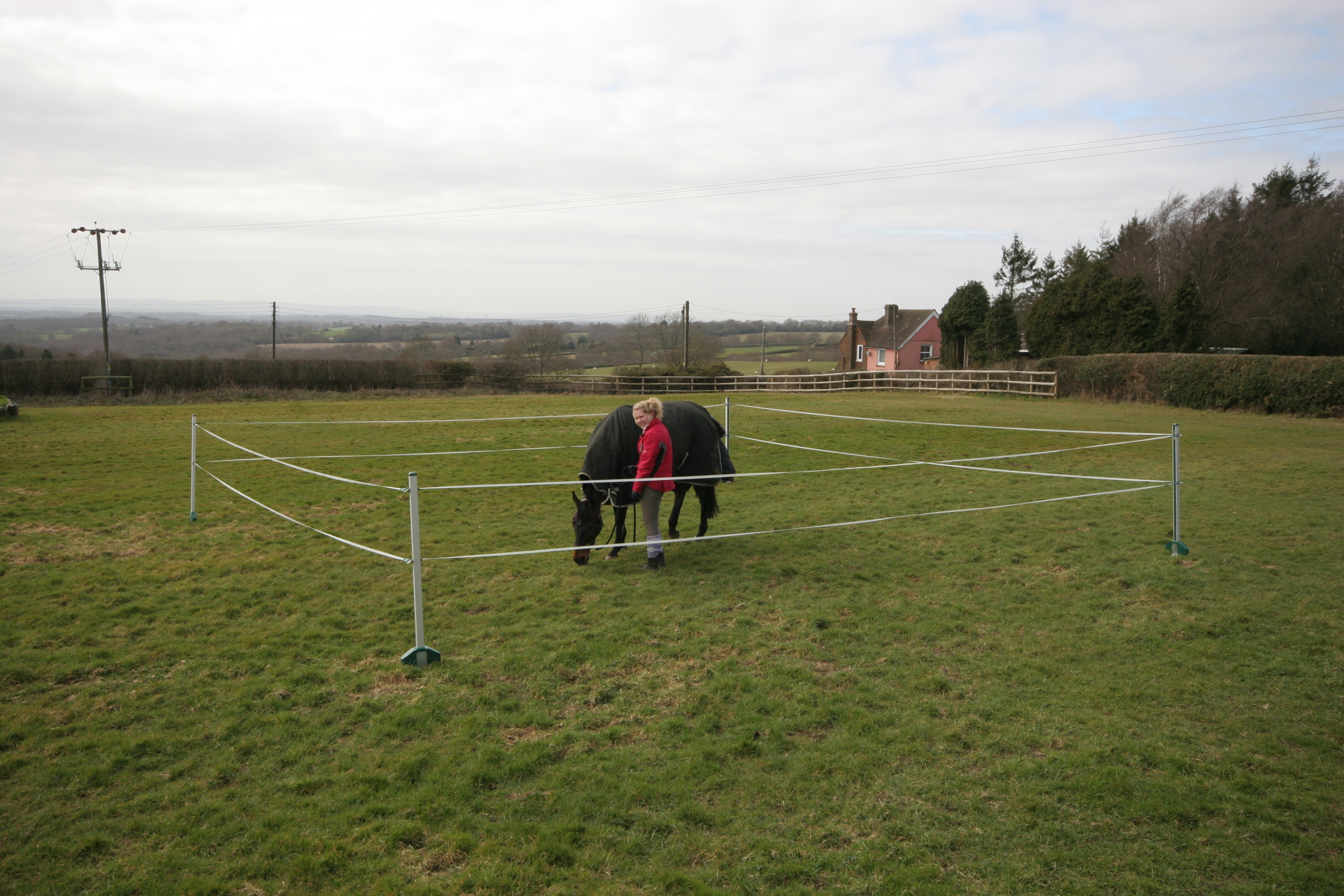

8m by 8m 4 Post Corral

8m by 8m 4 Post Turnout Area

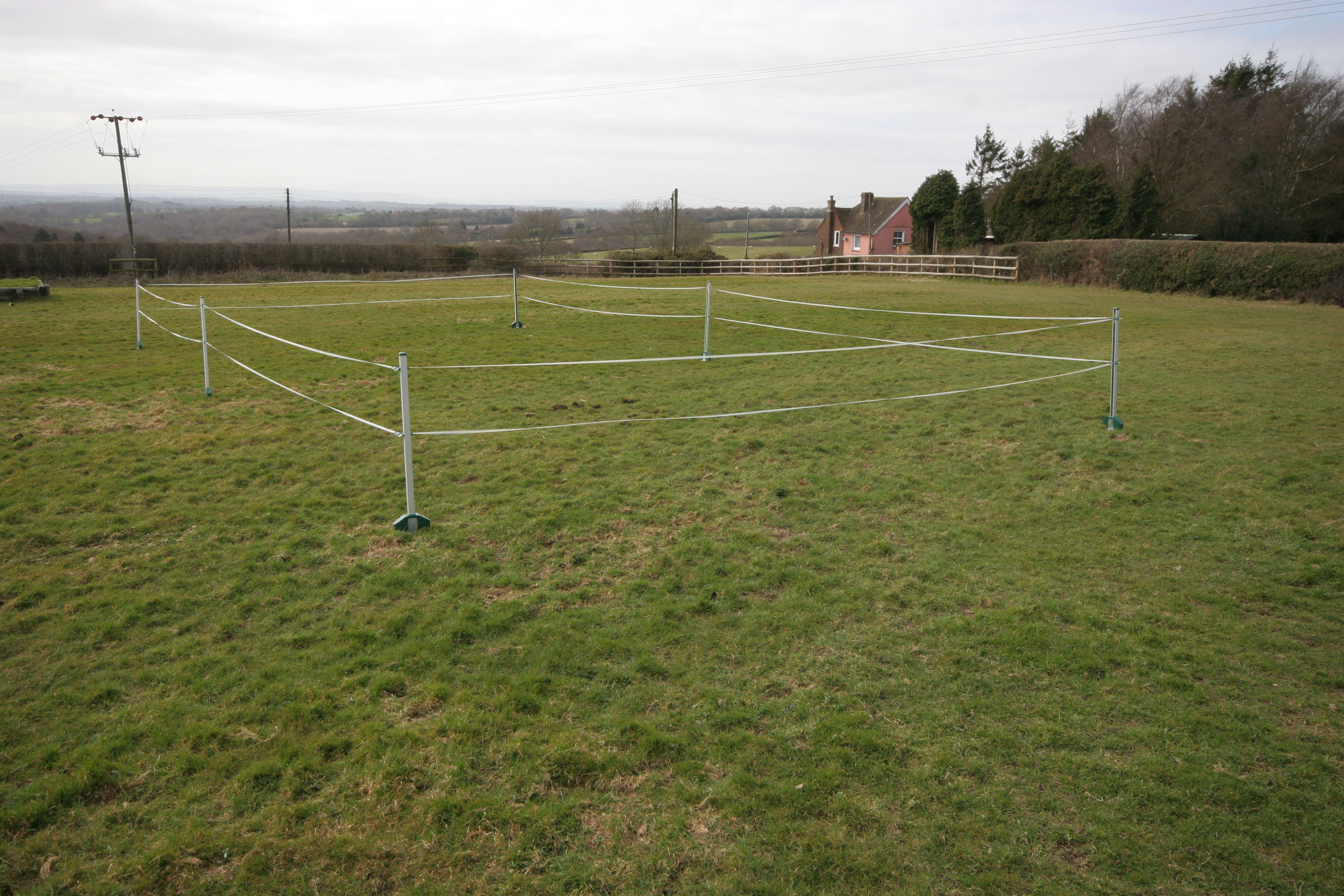

8m by 8m Four Post Enclosure
8m by 8m 4 Post Turnout Area
8m by 8m Four Post Enclosure

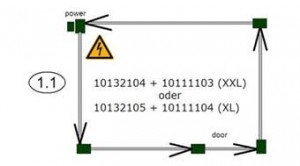

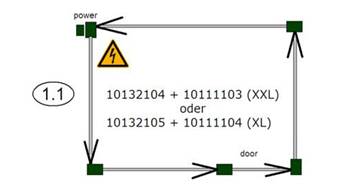

8m by 8m 5 Post Corral with ‘Gate’

8m by 8m  5 Post Turnout Area with 'Gate'
8m by 8m  5 Post Enclosure with 'Gate'

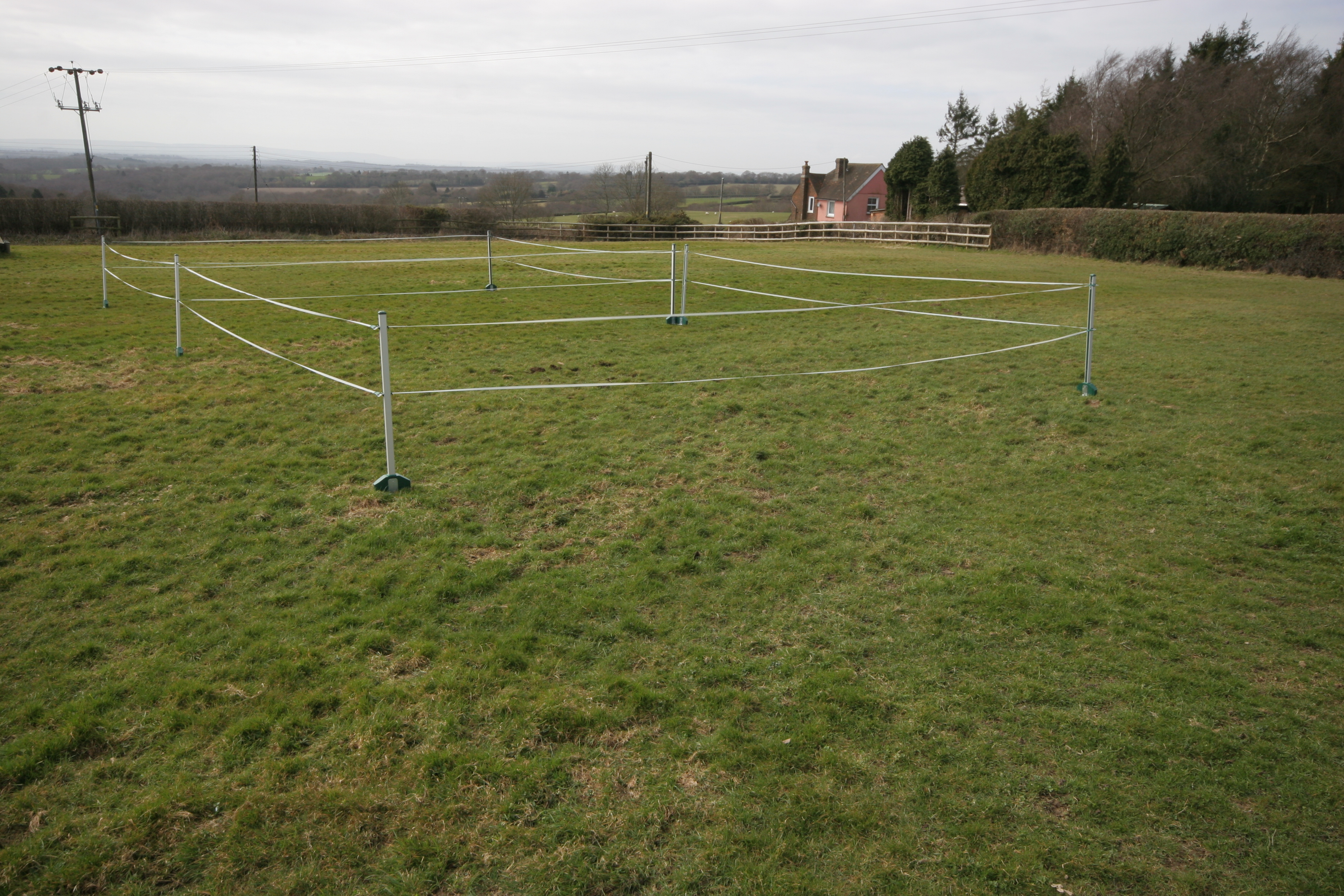

8m by 8m 5 Post Turnout Area with ‘Gate
8m by 8m 5 Post Enclosure with ‘Gate

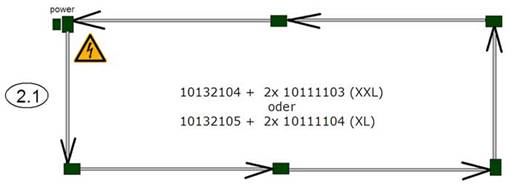

8m by 16m 6 Post Corral

8m by 16m  6 Post Turnout Area

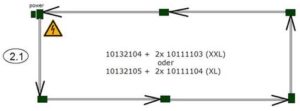

8m by 16m  6 Post Enclosure

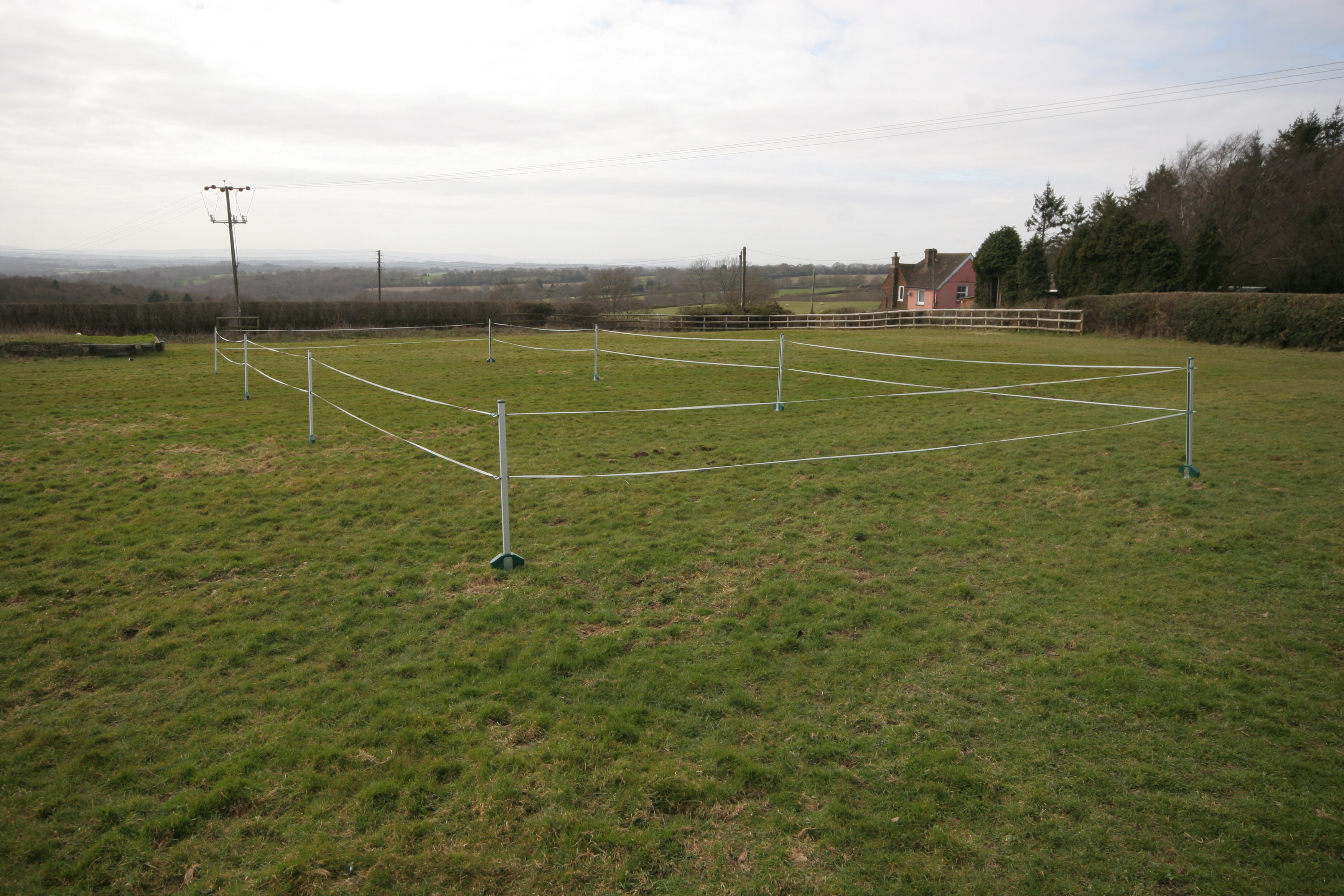

8m by 16m 6 Post Turnout Area
8m by 16m 6 Post Enclosur

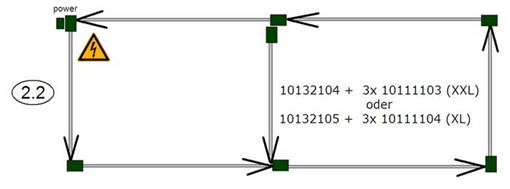

Pair of 8m by 8m Corrales – 7 posts

Pair of 8m by 8m corrals.
Pair of 8m by 8m Enclosures - 7 Posts
Pair of 8m by 8m Turnout Areas – 7 Post
Pair of 8m by 8m Enclosures – 7 Posts

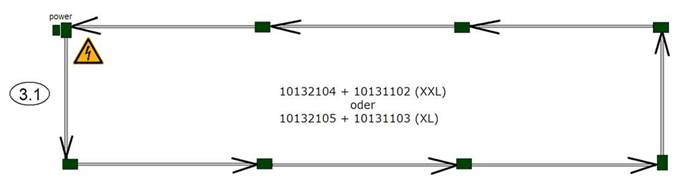

8m by 24m 8 Post Corral

8m by 24m  8 Post turnout Area.
8m by 24m   8 Post Enclosure.
8m by 24m 8 Post Turnout Area.
8m by 24m 8 Post Enclosure.

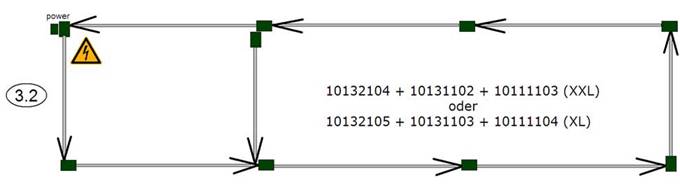

Adjacent 8 by 8 and 8 by 16 9 post corrals

8m by 8m and 8m by 16m   9 Post enclosures
8m by 8m & 8m by 16m  9 Post Turnout Areas
8m by 8m and 8m by 16m 9 Post Turnout Areas.
8m by 8m & 8m by 16m 9 Post Enclosures.

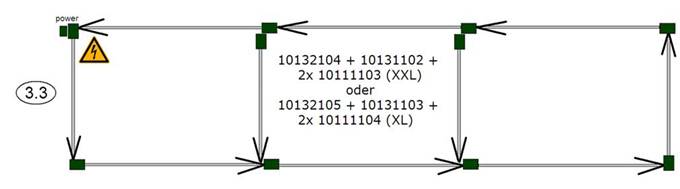

Three 8m by 8m Corrals 10 Post

Three 8m by 8m Turnout Areas   10 Post
Three 8m by 8m Enclosures   10 Posts
Three 8m by 8m Turnout Areas 10 Post
Three 8m by 8m Enclosures 10 Posts

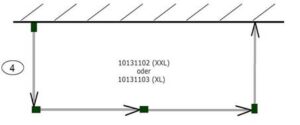

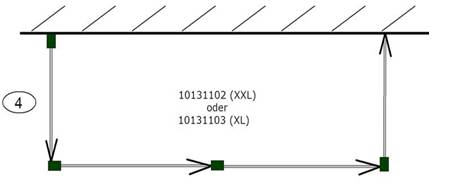

8m by 16m Adjacent existing fence / hedge / building. 4 Posts + Stop End

Adjacent 8m by 16m Turnout Area   4 Post + Stop End

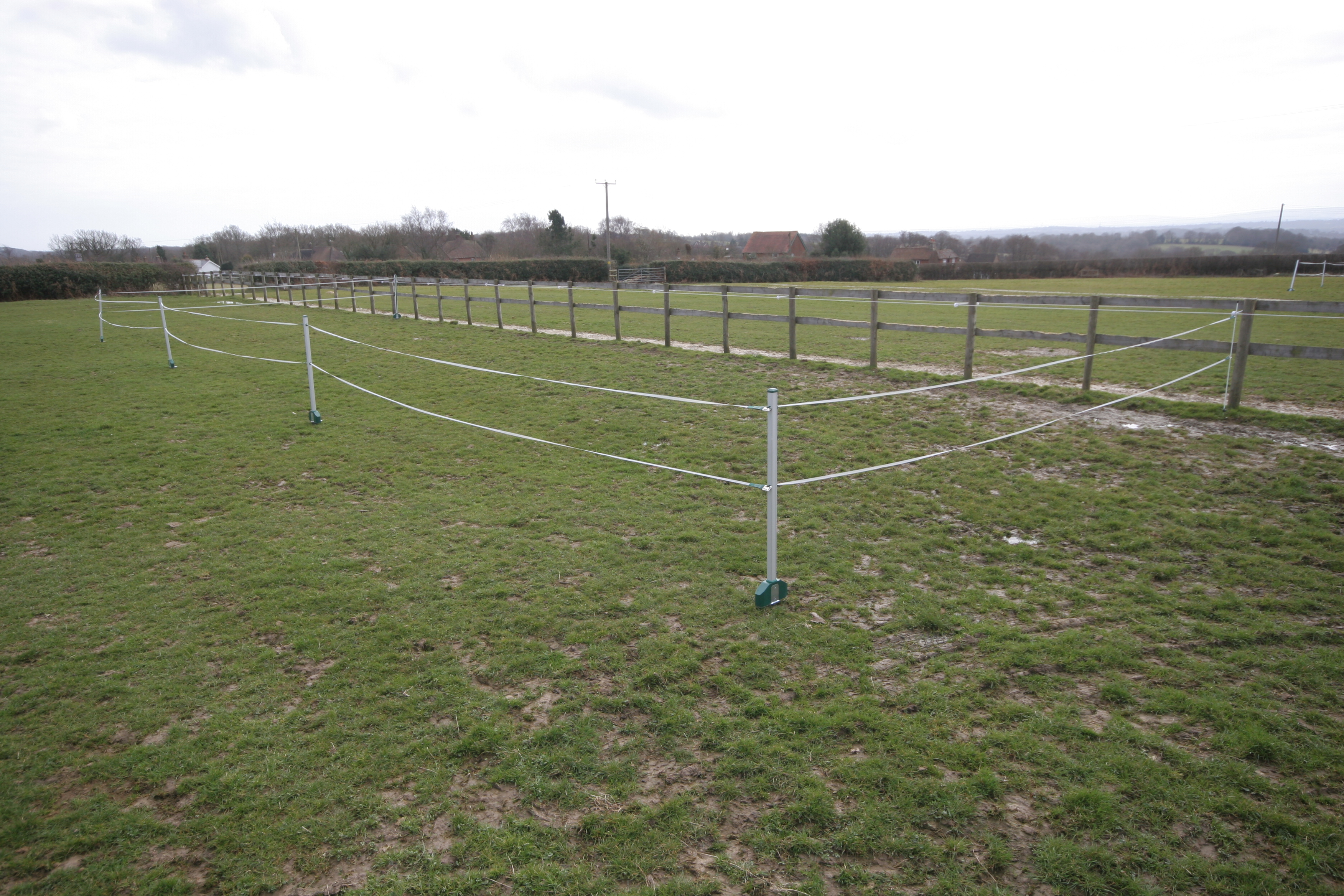

Adjacent 8m by 16m Enclosure   4 Post + Stop End

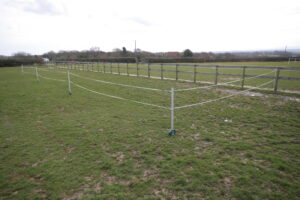

Adjacent 8m by 16m Turnout Area 4 Post + Stop End

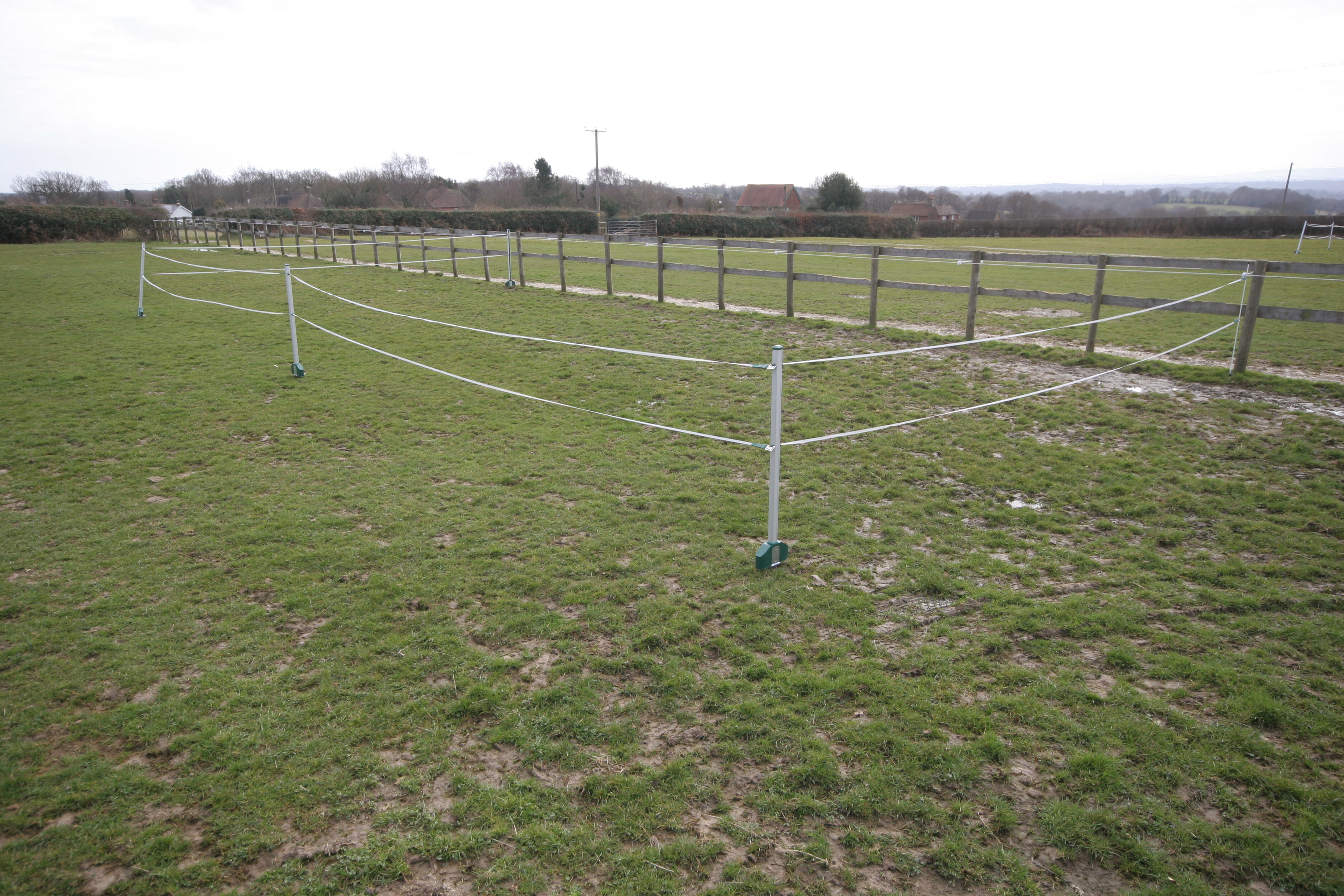

Adjacent 8m by 16m Enclosure 4 Post + Stop End

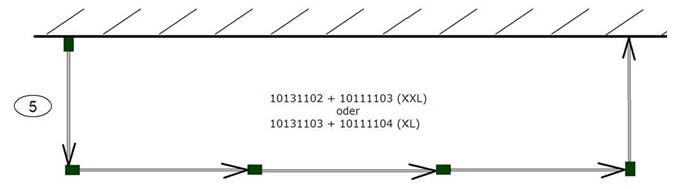

8m by 24m Adjacent existing fence / hedge / building. 5 Posts + Stop End

Adjacent 8m by 24m Turnout Area.  5 Post + Stop End
Adjacent 8m by 24m Enclosure.  5 Post + Stop End
Adjacent 8m by 24m Turnout Area. 5 Post + Stop End
Adjacent 8m by 24m Enclosure. 5 Post + Stop End

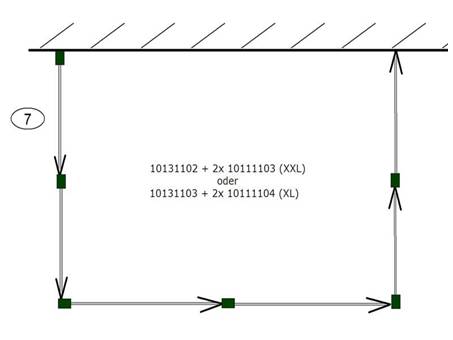

16m by 16m Corral adjaent existing fence / hedge / building. 6 post + Stop End

Adjacent 16m by 16m Turnout Area.  6 Posts + Stop End
Adjacent 16m by 16m Enclosure.  6 Post + Stop End
Adjacent 16m by 16m Turnout Area. 6 Posts + Stop End
Adjacent 16m by 16m Enclosure. 6 Post + Stop End
